Oilsense
Simple. Reliable. Trusted to Protect the Environment.
OilSense is a simple yet effective system designed to provide pump control and alarm notification of potentially threatening water and oil levels in pumping applications. The OilSense system features a premium quality, chemical spill rated pump along with an extremely reliable, easy to operate control panel. It also includes innovative oil/water probes that sense the difference between oil and water so that water is removed from the tank without oil being pumped into the environment. Common applications include elevator sump basins, transformer vaults, leachate well and effluent applications and garages for residential, commercial, industrial, effluent wastewater and site drainage needs.
Pump Features
- Designed for handling raw sewage, wastewater, industrial and commercial applications
- Corrosion resistant stainless steel and FRP construction
- Semi-vortex impeller
- Double mechanical silicon carbide seals with additional lip seal
- Highly efficient, continuous duty, air-filled motor with class E insulation
- Built-in thermal and amperage sensing protection
- Double shielded, permanently lubricated, high temperature C3 ball bearings
- Maximum water temperature is 104 degrees Farenheit (40 degrees Celsius)
- 2" NPT discharge
- 32' Power cable
- 2 year warranty

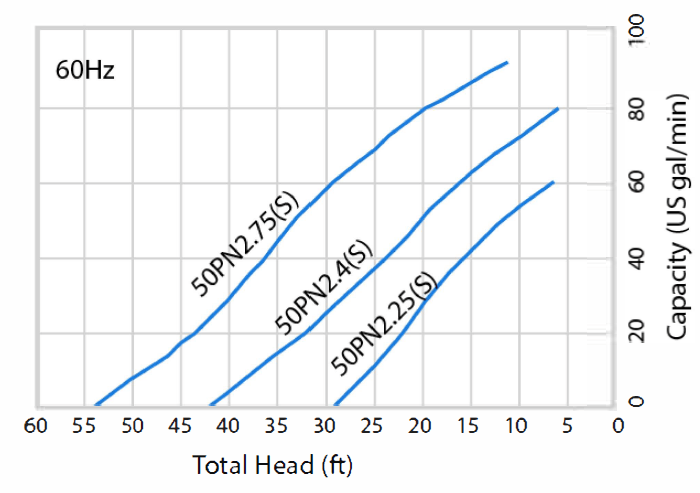

Performance Data

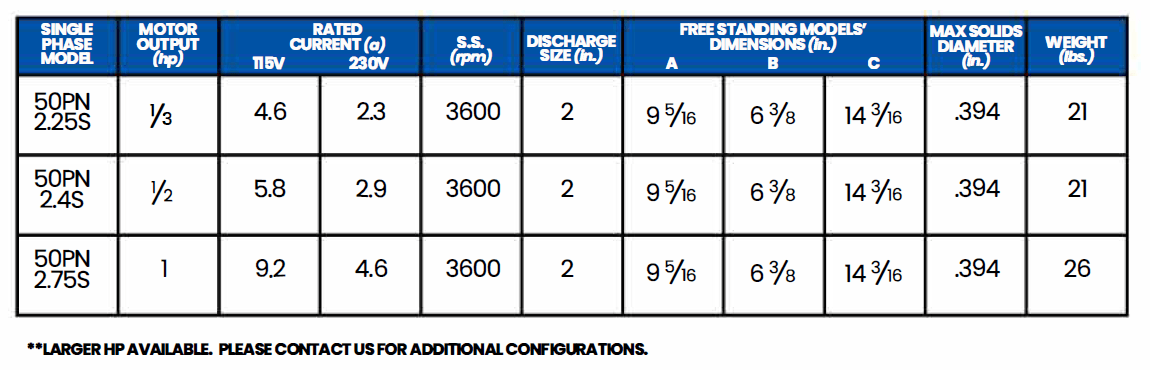

Series Specifications
Normal Operation
As water and oil enter the tank, the oil rises to create a floating layer on top of the water. The water level rises to reach the Start Probe, activating the pump to remove water from the tank. It continues pumping water out of the tank until the water level falls below the Stop Probe, deactivating the pump.
High Water Alarm
If the water level continues to rise and reaches the High Water Probe, the red high water LED indicator illuminates, the audible alarm sounds, and auxiliary contacts close, activating the remote alarm.
High Oil Alarm
If the oil level rises to activate the mechanical High Oil Float, the red high water LED indicator illuminates, the audible alarm sounds, and auxiliary contacts close, activating the remote alarm.
Oilsense Controller & Sensor Features
- NEMA 4x polycarbonate enclosure with clear hinged door and lockable latch
- 316 Stainless steel sensor rods and float
- Pigtail connection for system input power connection
- 115 Vac power input for control systems and 115 or 230 vac for pump
- LED indicators for system power fault, pump, high water alarm, oil fault alarm, and high oil alarm
- Audible alarm w/ silence switch for oil fault alarm, high water level and high oil alarm functions
- Press-to-test button w/ LED indicator
- Intrinsically safe
- Controller can be mounted in equipment room with sensor wired remotely
- Color code sensor rods and wires for intuitive installation
- Fully automated pump power and alarms based on water and oil levels
- Extremely accurate and precise (1/8" level control)
- Dry contacts for BMS, BAS, and fire panel will not plate, foul, or deteriorate regardless of water quality
- Sensor rods will not plate, foul, or deteriorate regardless of water quality
- Labeled LEDs and dry contacts for each function
- Press-to-test the entire system
- No exposure to high voltage in wet environment
- Full color-coded system for easy installation
- Never needs calibrating
- 5-year warranty
Provides Simple yet Proven Oil and Water Sensing Technology that Protects the Environment
Simple.
The system is simple to install, operate, and maintain.
Reliable.
The system is extremely reliable due to its unmatched quality of components, innovation, and craftsmanship.
Trusted.
Trusted to protect the environment.
